CENTRAL LOOSE TUBE

Central Loose Tube GYXTW
Type:GYXTW

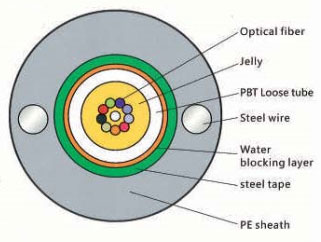

Optic Fibre in central loose tube corrugated steel tape bound PE sheath steel tape and loose tube bound together with heat-melting glue. Two paralleled steel wire within PE sheath.
Application Range
For long distance and local communications.
Installation Method
In pipe, or aerial mounting
Application Temperature
-40~+70
Features
With low attenuation loss and dispersion the reasonable design and precision control on fibre length in loose tube ensures better mechanical performance and adaptability to environment of FOC.
The close structure with steel tape and loose tube bound together with heat resistant glue ensures moisture and water resistant performance of FOC with light weight and easy for laying with better pliability steel tape armour ensures better crush resistant performance.
Technical Parameters
FOC Core(S) FOC OD(mm) FOC Weight(kg/km) Min. Bending Radius(mm) Min. Tension Allowed (N) Min. Crush Pressure (N/100mm)
Static Dynamic Short Short Term Long Term Short Term Long Term
2~6 10.2 110 110 220 3000 1000 3000 1000
8~2 11.2 134 120 240 3000 1000 3000 1000
Central Loose Tube GYXTA
Type:GYXTA

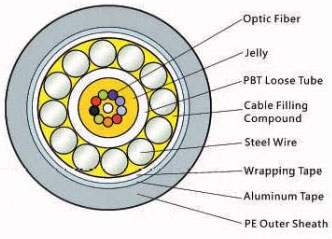

Optic Fibre in central loose tube cable core filled with filling compound 12 pieces of steel wire evenly stranded around loose tube plastic-coated steel tape bound with PE sheath
Application Range
For long distance and local communications.
Installation Method
In pipe or aerial or mounting
Application Temperature
-40~+70
Features
With low attenuation loss and dispersion the reasonable design and precision control on fibre length in loose tube ensures better mechanical performance and adaptability to environment of FOC with light weight and convenient for laying wiyh better pliability. Steel wire armour ensures better crush-resistant performance.
Cable core wound with corrugated Al tape ensures better moisture proof performance.
Technical Parameters
FOC Core(S) FOC OD(mm) FOC Weight(kg/km) Min. Bending Radius(mm) Min. Tension Allowed (N) Min. Crush Pressure (N/100mm)
Static Dynamic Short Short Term Long Term Short Term Long Term
2~12 10.6 150 120 240 1500 600 1000 300
Central Loose Tube GYXTS
Type:GYXTS

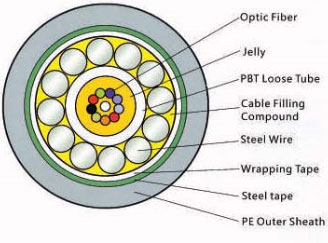

Optic Fibre in central loose tube cable core filled with filling compound 12 pieces of steel wire evenly stranded around loose tube plastic-coated steel tape bound with PE sheath
Application Range
For long distance and local communications.
Installation Method
In pipe, aerial, or direct burial
Application Temperature
-40~+70
Features
With low attenuation loss and dispersion the reasonable design and precision control on fibre length in loose tube ensures better mechanical performance and adaptability to environment of FOC with light weight and easy for laying wiyh better pliability. Steel wire armour ensures better crush-resistant performance.
Cable core wound with corrugated steel tape ensures better moisture and shooting proof performance.
Technical Parameters
FOC Core(S) FOC OD(mm) FOC Weight(kg/km) Min. Bending Radius(mm) Min. Tension Allowed (N) Min. Crush Pressure (N/100mm)
Static Dynamic Short Short Term Long Term Short Term Long Term
2~12 10.4 165 120 240 3000 1000 3000 1000
Central Loose Tube GYXTY
Type:GYXTY

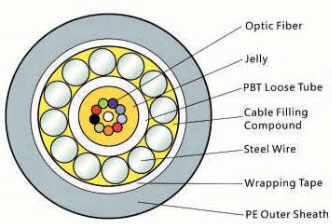

Optic Fibre in central loose tube cable core filled with filling compound 12 pieces of steel wire evenly stranded around loose tube PE sheath
Application Range
For local communications.
Installation Method
In pipe, aerial
Application Temperature
-40~+70
Features
With low attenuation loss and dispersion the reasonable design and precision control on fibre length in loose tube ensures better mechanical performance and adaptability to environment of FOC with light weight and convenient for laying wiyh better pliability. Steel wire armour ensures better tension-resistant performance with shooting-proof performance.
Technical Parameters
FOC Core(S) FOC OD(mm) FOC Weight(kg/km) Min. Bending Radius(mm) Min. Tension Allowed (N) Min. Crush Pressure (N/100mm)
Static Dynamic Short Short Term Long Term Short Term Long Term
2~12 9.6 134 100 200 1500 600 1000 300
