| Product Details |
|

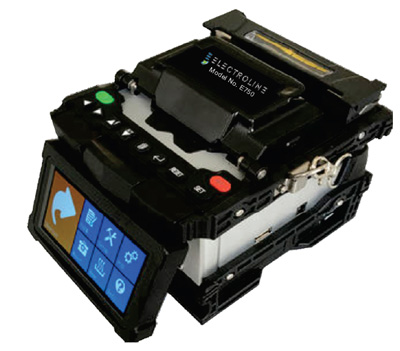

| Multi Function Automatic Fiber Fusion Splicer E750 |
| E750 Fiber fusion splicer is with V-groove and no-mirror design, it has flexible and stable performance when aligning fibers. It is with classic industrial design, user-friendly size and weight, easy operating GUI menu, convenient ARC automatic calibration function and high quality components. It is suitable for both indoor and outdoor fiber splicing projects. |
| Features |

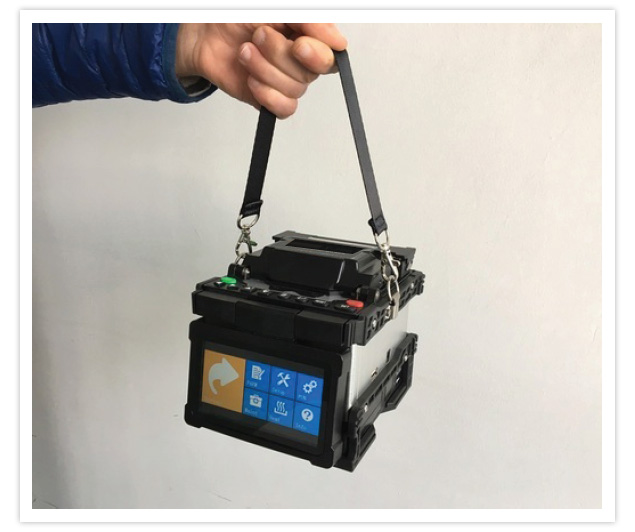

- Handheld Fiber Fusion Splicer E750
- 1s boot up, 6s typically for splicing and 24s for heating.
- Fiber core max. magnifications up to 250X
- Electrodes discharging more than 4500 times
- Integrated heater, easy and convenient to operate.
- USB port for software updating and data records exporting.

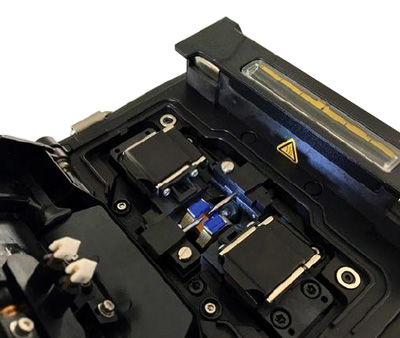

- Image digital processing system with core to core alignment.
- Real-time ARC calibration automatically
- 360° rubber armor protects machine from shock, water and dust.
- 5200mAh and pluggable Li-battery, typical 200 cycles splicing and heating.
- Support to store 4000 groups of Fusion Records
- High sensitivity CMOS sensor, Color LCD of 4.3inch with pixels 480x280
- Ensure Security with Password Protection.
|
Specifications
| Applicable fiber |
SM(ITU-TG 652) MM(ITU-TG 651) DS(ITU-T G653) NZDS(ITU-T G655) |
| Diameter of cladding |
80-150µm |
| Diameter of coating |
160-900µm |
| Typical splice loss |
SM: 0.02dB, MM: 0.01dB, DS: 0.04db, NZDS: 0.04dB |
| Return loss |
> 60dB |
| Fiber cleaved length |
10-16mm (coating diameter < 250µm), 16mm (coating diameter:250-1000µm) |
| Splicing program |
40 groups |
| Operate mode |
Automatic/Manual |
| Auto-heating |
Available |
| Splicing Time |
6 Seconds |
| Heating Time |
24 Seconds for 60 mm and 40 mm shrinkable sleeves |
| Fiber magnification |
250x (X or Y view), 125x (X and Y view) |
| Fiber display |
2 CMOS Camera, 4.3 Inch 480*280 Colour LED Monitor |
| Records storage |
4000 results |
| Loss evaluation |
Available |
| Tension Test |
1.8-2.2N |
| Interface |
GUI menu interface, easy for operation |
| Battery |
5200mAh Li-battery, typical 250 cycles splicing and heating, support separating charging |
| Power supply |
Adapter, input: AC 100-240v (50/60HZ), output: 11-13.5V |
| Electrodes life |
More than 4500 ARC discharges, can be replaced conveniently |
| Terminal |
USB2.0 port, for software upgrading and records exporting |
| Operating conditions |
Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC, Wind speed: Max 15m/s |
| Dimension |
157mm(L) *136mm(W) *138(H) (including rubber armor) |
| Weight |
2.00kg (including battery) |
