| Brief Introduction |

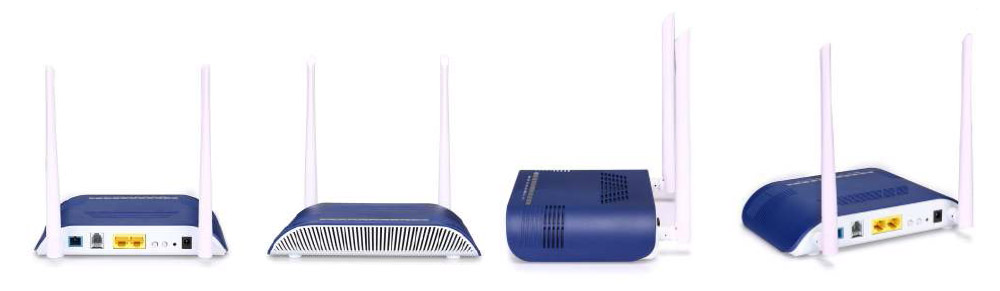

| ► HG323RGW terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. ► These boxes are based on the mature Gigabit GPON technology, which have high ratio of performance to price, and the technology of 802.11n WiFi (2T2R), Layer 2/3, and high quality VoIP as well. ► They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as G/EPON 1GE+1FE+WiFi +CATV ONU meets telecom operators FTTO (office), FTTD (Desk) ,FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements to design and EPON/GPON Gigabit Ethernet products. |
Product Categories
| Product model | Product specification |
| HG323RW | 1GE+1FE+1POTS+WIFI |

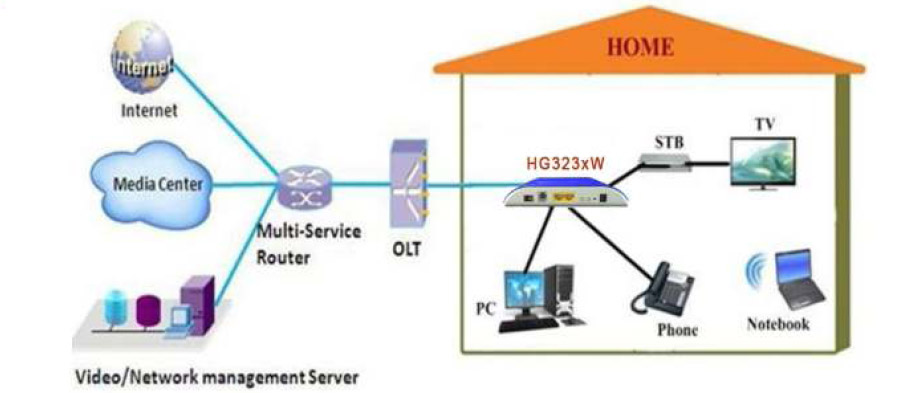

Application Chart
Technical Parameters
| Technical item | 1GE+1FE+1POTS+WIFI |
| PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| Wavelength | Tx1310nm,Rx 1490nm |
| Optical interface | SC/UPC connector |
| LAN interface | 1 x 10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| POTS interface | 1 FXS, RJ11 connectors |
| WiFi interface | Compliant with IEEE802.11b/g/n, Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps, 2T2R,2 external antenna 5dBi, Support: multiple SSID Channel:13 Modulation type: DSSS, CCK and OFDM Encoding scheme: BPSK, QPSK, 16QAM and 64QAM |
| LED | 8, For Status of POWER, LOS, PON, LAN1, LAN2, PHONE, Pair, WiFi |
| Operating condition | Temperature: 0℃～+50℃ Humidity: 10%～90%（non-condensing） |
| Storing condition |
Temperature: -30℃～+60℃ Humidity: 10%～90%（non-condensing） |
| Power supply | DC 12V/1A |
| Power supply | ≤6W |
| Dimension | 185mm×120mm×34mm（L×W×H） |
| Net weight | 0.24Kg |
