| Brief Introduction |
|
|---|---|

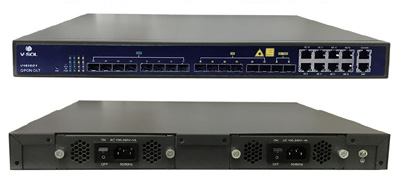

| V1600G1 GPON OLT is 1U height 19 inch rack mount product. Its main features are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. The OLT can be used for “Triple-Play”, VPN, IP Camera, Enterprise LAN and ICT applications.
V1600G1 provides 8GE(copper) and 8SFP(6*1GE+2*10GE) slots independent interface for uplink, and 8*GPON OLT ports for downstream. It can support 1024 ONUs under 1:128 splitter ratio. |
Technical Specifications
| ITEM | V1600G1 | |
| Chassis | Rack | 1U 19 inch standard box |
1000M |
QTY | 16 |
| Copper | 8*10/100/1000M auto-negotiation | |
| SFP 1000M，Duplex (independent) |
6 |
|
| SFP+ SFP+ is 10GE (independent) |
2 |
|
GPON |
QTY | 8 |
| Physical lnterface | SFP Slots | |
| Connector Type | Class B+/C+ | |
| Max splitting ratio | 1:128 | |
| Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port | |
| PON Port Specification |
Transmission Dis. | 20KM |
| GPON Port speed | Upstream 1.244G, Downstream 2.488G | |
| Wave length | TX 1490nm, RX 1310nm | |
| Connector | SC/PC | |
| Fiber Type | 9/125μm SMF | |
| TX Power | +1~+5dBm | |
| Rx Sensitivity | -28dBm | |
| Saturation Optical Power | -8dBm | |
| Management Mode | SNMP, Telnet ,CLI,WEB | |
| Management Function | Fan Group Detecting; Port Status monitoring and configuration management; Layer2 switch configuration such as VLAN, Trunk, RSTP,IGMP,QOS, etc; GPON management function: DBA,ONU authorization, ACL, QOS, etc; Online ONU configuration and management; User management; Alarm management. |
|
| Layer 2 Switch | 16K Mac address Support 4096 VLANs; Support port VLAN and protocol VLAN; Support VLAN tag/Un-tag ,VLAN transparent transmission; Support VLAN translation and QinQ; Support storm control based on port Support port isolation Support port rate limitation Support 802.1D and 802.1W; Support static LACP; QOS based on port, VID, TOS and MAC address; Access control list; IEEE802.x flow control; Port stability statistic and monitoring. |
|
| Multicast | IGMP snooping 256 IP Multicast Groups; |
|
| DHCP | DHCP server DHCP relay DHCP snooping |
|
| Layer 3 Route | Arp proxy Static route 1024 hardware Host Routes; 512 hardware Subnet Routes; |
|
| GPON Function | Tcont dba; Gemport traffic In compliant with ITUT984.x standard; Up to 20KM transmission Distance; Support data encryption, multi-cast, port VLAN, separation, RSTP, etc; Support ONU auto-discovery/link detection/remote upgrade of software; Support VLAN division and user separation to avoid broadcast storm; Support power-off alarm function, easy for link problem detection; Support broadcasting storm resistance function; Support port isolation between different ports; Support ACL and SNMP to configure data packet filter flexibly; Specialized design for system breakdown prevention to maintain stable system; Support RSTP,IGMP Proxy. |
|
| Dimension(L*W*H) | 442*200*43.6mm | |
| Weight | 3.1kg | |
| Power Supply | AC:90~264V, 47/63Hz, Double Power Supply | |
| Power Consumption | 25W | |
| Operating Environment | Working Temp. | -10~+55℃ |
| Storage Temp. | -40~+85℃ | |
| Relative Humidity | 5~90%(non-conditioning) | |
