COAXIAL CABLES

Coaxial Cable 75 ohm RG 59
Specifications: RG 59 RG 59-Tri RG 59-M
Center Conductor BC/CCS BC/CCS BC/CCS
Nominal dia .mm 0.81 0.81 0.81
Dielectric FPE FPE FPE
Nominal dia .mm 3.66 3.66 3.66
Shield
Foil AL/Pet/B AL/Pet/B AL/Pet/B
Braid AL AL AL
Nominal dia .mm 64x0.16 64x0.16 64x0.16
2nd Foil Al/pet/Al
2nd Braid
Nominal dia .mm
Jacket PVC PVC PVC
Nominal dia .mm 6.0 6.2 6.0
Messenger
Nominal dia .mm 1.3


Electrical Charecteristics RG 59 RG 59-Tri RG 59-M
Impedance(Ohm) 75±3 75±3 75±3
Velocity of Propagation 85 85 85
Minimum Return Loss(dB) ≥22 ≥22 ≥22
Attenuation(dB/100m) Frequency Nominal values Frequency Nominal values Frequency Nominal values
[@68©F.(20°C)] 5MHz 2.82 330MHz 15.29 550MHz 19.52
  55MHz 6.73 350MHz 15.76 600MHz 20.34
  211MHz 12.47 400MHz 16.73 750MHz 22.87
  250MHz 13.45 450MHz 17.72 870MHz 24.85
  300MHz 14.60 500MHz 18.70 1000MHz 26.84
Coaxial Cable 75 ohm RG 6
Specifications: RG 6 RG 6-Tri RG 6-M
Center Conductor BC/CCS BC/CCS BC/CCS
Nominal dia .mm 1.02 1.02 1.02
Dielectric FPE FPE FPE
Nominal dia .mm 4.57 4.57 4.57
Shield
Foil AL/Pet/B AL/Pet/B AL/Pet/B
Braid AL AL AL
Nominal dia .mm 64x0.16 64x0.16 64x0.16
2nd Foil Al/pet/Al
2nd Braid
Nominal dia .mm
Jacket PVC PVC PVC
Nominal dia .mm 6.9 7.06 6.9
Messenger
Nominal dia .mm 1.3


Electrical Charecteristics RG 6 RG 6-Tri RG 6-M
Impedance(Ohm) 75±3 75±3 75±3
Velocity of Propagation 85 85 85
Minimum Return Loss(dB) ≥22 ≥22 ≥22
Attenuation(dB/100m) Frequency Nominal values Frequency Nominal values Frequency Nominal values
[@68©F.(20°C)] 5MHz 1.90 330MHz 12.26 550MHz 16.08
  55MHz 5.25 350MHz 12.63 600MHz 16.73
  211MHz 10.00 400MHz 13.61 750MHz 18.54
  250MHz 10.82 450MHz 14.43 870MHz 20.04
  300MHz 11.64 500MHz 15.29 1000MHz 21.49
Coaxial Cable 75 ohm RG 11
Specifications: RG 11 RG 11-Tri RG 11-M
Center Conductor BC/CCS BC/CCS BC/CCS
Nominal dia .mm 1.63 1.63 1.63
Dielectric FPE FPE FPE
Nominal dia .mm 7.11 7.11 7.11
Shield
Foil AL/Pet/B AL/Pet/B AL/Pet/B
Braid AL AL AL
Nominal dia .mm 96x0.16 96x0.16 96x0.16
2nd Foil Al/pet/Al
2nd Braid
Nominal dia .mm
Jacket PVC PVC PVC
Nominal dia .mm 10.03 10.16 10.03
Messenger
Nominal dia .mm 1.83


Electrical Charecteristics RG 11 RG 11-Tri RG 11-M
Impedance(Ohm) 75±3 75±3 75±3
Velocity of Propagation 85 85 85
Minimum Return Loss(dB) ≥22 ≥22 ≥22
Attenuation(dB/100m) Frequency Nominal values Frequency Nominal values Frequency Nominal values
[@68©F.(20°C)] 5MHz 1.25 330MHz 7.71 550MHz 9.97
  55MHz 3.15 350MHz 7.94 600MHz 10.43
  211MHz 6.23 400MHz 8.53 750MHz 11.97
  250MHz 6.72 450MHz 9.02 870MHz 13.31
  300MHz 7.38 500MHz 9.51 1000MHz 14.27
Coaxial Cable 75 ohm Trunk Cable
Specifications: QR 500-W QR 500-S QR 540-W QR 540-SM
Center Conductor CCA CCA CCA CCA
Nominal dia .mm 2.77 2.77 3.15 3.15
Dielectric FPE FPE FPE FPE
Nominal dia .mm 11.43 11.43 13.03 13.03
Outer Conductor AL-T AL-T AL-T AL-T
Thickness 0.35 0.64 0.35 0.7
Jacket PE PE PE PE
Nominal dia .mm 15.0 14.2 15.5 15.9
Messenger
Nominal dia .mm 2.77 2.77 2.77 2.77


Electrical Charecteristics QR 500 QR 540
Impedance(Ohm) 75±3 75±3
Velocity of Propagation 85 85
Minimum Return Loss(dB) ≥22 ≥22
Attenuation(dB/100m) Nominal values Nominal values Nominal values Nominal values
[@68©F.(20°C)] 5MHz 0.52 450MHz 5.35 5MHz 0.46 450MHz 4.59
  55MHz 1.77 500MHz 5.67 55MHz 1.54 500MHz 4.89
  211MHz 3.58 550MHz 5.97 211MHz 3.12 550MHz 5.12
  250MHz 3.94 600MHz 6.27 250MHz 3.38 600MHz 5.38
  300MHz 4.30 750MHz 7.09 300MHz 3.71 750MHz 6.07
  350MHz 4.69 865MHz 7.68 350MHz 4.03 865MHz 6.56
  400MHz 5.02 1000MHz 8.27 400MHz 4.33 1000MHz 7.12
Coaxial Cable 50 ohm RG Series
Specifications: RG 58 RG 213
Center Conductor BC BC
Nominal dia .mm 19x0.18 7x0.75
Dielectric SPE SPE
Nominal dia .mm 2.95 7.24
Shield
Braid BC BC
Nominal dia .mm 0.10 0.16
Nominal Coverage % 95 95
Jacket PVC PVC
Nominal dia .mm 4.95 10.03


Electrical Charecteristics RG 58 RG 213
Impedance(Ohm) 50±3 50±3
Velocity of Propagation 85 85
Minimum Return Loss(dB) ≥22 ≥22
Attenuation(dB/100m) Frequency Nominal values Frequency Nominal values
[@68©F.(20°C)] 50MHz 5.0 100MHz 1.9
  100MHz 12.2 300MHz 3.4
  200MHz 17.8 100MHz 6.8
  300MHz 26.6 300MHz 12.1
  700MHz 58.0 900MHz 22.0
  1000MHz 75.0 1000MHz 26.8
Coaxial Cable 50 ohm D-FB Series
Specifications: 5D-FB 7D-FB 8D-FB 10D-FB
Center Conductor BC/CCA BC/CCA BC/CCA BC/CCA
Nominal dia .mm 1.8 2.6 2.8 3.5
Dielectric FPE FPE FPE FPE
Nominal dia .mm 5.0 7.25 7.8 10
Outer Conductor AL/PET/B AL/PET/B AL/PET/B AL/PET/B
Nominal Coverage % 95 95 95 95
Jacket PVC PVC PVC PVC
Nominal dia .mm 7.5 9.8 10.4 13.0


Electrical Charecteristics 5D-FB 7D-FB 8D-FB 10D-FB
Impedance(Ohm) 50±3 50±3 50±3 50±3
Nominal Capacitance(pF/m) 85±3 85±3 85±3 85±3
Velocity of Propagation 85 85 85 85
Minimum Return Loss(dB) ≥20 ≥20 ≥20 ≥20
Attenuation(dB/100m) Nominal values Nominal values Nominal values Nominal values
[@68©F.(20°C)] 150MHz 7.6 150MHz 5.30 150MHz 4.9 150MHz 4.1
  280MHz 10.9 280MHz 7.30 280MHz 7.0 280MHz 5.6
  350MHz 12.1 350MHz 8.30 350MHz 8.1 350MHz 6.3
  400MHz 13.0 400MHz 9.10 400MHz 8.8 400MHz 6.9
  800MHz 19.0 800MHz 13.0 800MHz 13.1 800MHz 10.2
  900MHz 20.4 900MHz 14.30 900MHz 14.0 900MHz 11.1
  1200MHz 24.2 1200MHz 17.0 1200MHz 16.7 1200MHz 13.4
  1500MHz 27.5 1500MHz 19.7 1500MHz 19.2 1500MHz 15.3
  1900MHz 31.8 1900MHz 22.9 1900MHz 22.2 1900MHz 17.7

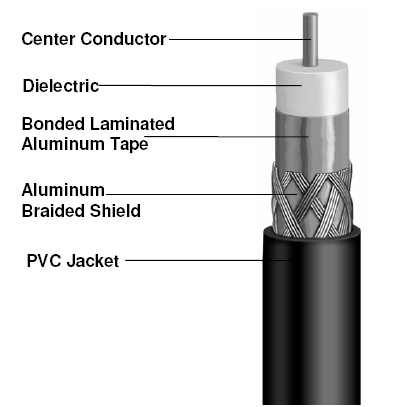

SAT1160BV 3 GHZ
75 Ohm Coaxial Cable
BONDED LAMINATED ALUMINUM TAPE, 60% BRAID, PVC JACKET
CENTER CONDUCTOR:
18 AWG COPPER C0VERED STEEL
NOMINAL DIAMETER: 0.040” (1.02 mm)
DIELECTRIC:
GAS EXPANDED POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 0.180” (4.57 mm)
SHIELD:
1ST SHIELD:
LAMINATED ALUMINUM TAPE BONDED TO THE DIELECTRIC
NOMINAL DIAMETER OVER TAPE: 0.187” (4.75 mm)

2nd SHIELD: 34 AWG ALUMINUM BRAID WIRE 60% COVERAGE
JACKET:
PVC
NOMINAL DIAMETER OVER JACKET: 0.272” (6.91 mm)
NOMINAL JACKET THICKNESS: 0.030” (0.76 mm)
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 +/- 3.0 Ohms
VELOCITY OF PROPAGATION: 85.0% NOMINAL
STRUCTURAL RETURN LOSS: 5 MHz to 1000 MHz> 20 dB
1000 MHz to 3000 MHz > 15 dB
NOMINAL DC RESISTANCE (Ohms/km): CENTER CONDUCTOR: 100.1
OUTER CONDUCTOR: 34.4
ATTENUATION @ 68°F (20°C):
Frequency dB/100 feet Nominal dB/100 meters Nominal
5 MHz 0.58 1.90
55 MHz 1.60 5.25
83 MHz 1.95 6.40
187 MHz 2.85 9.36
211 MHz 3.05 10.01
250 MHz 3.30 10.82
300 MHz 3.55 11.64
350 MHz 3.85 12.63
400 MHz 4.15 13.61
450 MHz 4.40 14.44
500 MHz 4.66 15.29
550 MHz 4.90 16.08
600 MHz 5.10 16.73
750 MHz 5.65 18.54
865 MHz 6.10 20.01
1000 MHz 6.55 21.49
1200 MHz 7.17 23.52
1450 MHz 7.87 25.82
1800 MHz 8.77 28.77
2200 MHz 9.68 31.75
2400 MHz 10.10 33.14
2800 MHz 10.90 35.76
3000 MHz 11.28 37.01
SAT660BV 3 GHZ
75 Ohm Coaxial Cable
BONDED LAMINATED ALUMINUM TAPE, 60% BRAID, PVC JACKET
CENTER CONDUCTOR:
14 AWG COPPER C0VERED STEEL
NOMINAL DIAMETER: 0.064” (1.63 mm)
DIELECTRIC:
GAS EXPANDED POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 0.280” (7.11 mm)
SHIELD:
1ST SHIELD:
LAMINATED ALUMINUM TAPE BONDED TO THE DIELECTRIC
NOMINAL DIAMETER OVER TAPE: 0.287” (7.29 mm)

2nd SHIELD: 34 AWG ALUMINUM BRAID WIRE 60% COVERAGE
JACKET:
PVC
NOMINAL DIAMETER OVER JACKET: 0.400” (10.16 mm)
NOMINAL JACKET THICKNESS: 0.042” (1.07 mm)
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 +/- 3.0 Ohms
VELOCITY OF PROPAGATION: 85.0% NOMINAL
STRUCTURAL RETURN LOSS: 5 MHz to 1000 MHz> 20 dB
1000 MHz to 3000 MHz > 15 dB
NOMINAL DC RESISTANCE (Ohms/km): CENTER CONDUCTOR: 41.0
OUTER CONDUCTOR: 22.5
ATTENUATION @ 68°F (20°C):
Frequency dB/100 feet Nominal dB/100 meters Nominal
5 MHz 0.38 1.25
55 MHz 0.96 3.15
83 MHz 1.18 3.87
187 MHz 1.75 5.74
211 MHz 1.90 6.23
250 MHz 2.05 6.72
300 MHz 2.25 7.38
350 MHz 2.42 7.94
400 MHz 2.60 8.53
450 MHz 2.75 9.02
500 MHz 2.90 9.51
550 MHz 3.04 9.97
600 MHz 3.18 10.43
750 MHz 3.65 11.97
865 MHz 3.98 13.05
1000 MHz 4.35 14.27
1200 MHz 4.77 15.65
1450 MHz 5.30 17.39
1800 MHz 6.00 19.69
2200 MHz 6.75 22.14
2400 MHz 7.11 23.32
2800 MHz 7.78 25.53
3000 MHz 8.11 26.60
SZ4994503   |  F11TSV APD SM MT
75 Ohm Coaxial Drop Cable
Construction Materials
Corrosion Protection: APD®
Jacket Material: PVC
Center Conductor Material: Copper-clad steel
Dielectric Material: Foam PE
Inner Shield (Braid) Coverage: 60 %
Inner Shield (Braid) Gauge: 34 AWG
Inner Shield (Braid) Material: Aluminum
Inner Shield (Tape) Material: Aluminum/Polymer/Aluminum (APA) bonded
Outer Shield (Tape) Material: Aluminum/Polymer/Aluminum (APA)
Electrical Specifications
dc Resistance, Inner Conductor, nominal: 12.50 ohms/kft
dc Resistance, Outer Conductor, nominal: 4.60 ohms/kft
dc Resistance, Loop, nominal: 17.10 ohms/kft
dc Resistance Note: Nominal values based on a standard condition of 20 °C (68 °F)
Capacitance: 53.1 pF/m | 16.2 pF/ft
Characteristic Impedance: 75 ohm
Characteristic Impedance Tolerance: ±3 ohm
Nominal Velocity of Propagation (NVP): 85 %
Electrical Performance
Frequency Attenuation ( dB/100 m) Attenuation (dB/100 ft)
5 MHz 1.25 0.38
55 MHz 3.15 0.96
83 MHz 3.87 1.18
187 MHz 3.90 1.19
204 MHz 5.74 1.75
211 MHz 6.14 1.87
250 MHz 6.23 1.90
300 MHz 6.72 2.05
350 MHz 7.38 2.25
400 MHz 7.94 2.42
450 MHz 8.53 2.60
500 MHz 9.02 2.75
550 MHz 9.51 2.90
600 MHz 9.97 3.04
750 MHz 10.43 3.18
865 MHz 11.97 3.65
1000 MHz 13.05 3.98
1200 MHz 14.27 4.35
1218 MHz 16.14 4.92
1300 MHz 16.44 5.01
1400 MHz 17.13 5.22
1500 MHz 17.79 5.42
1600 MHz 18.44 5.62
1700 MHz 19.08 5.81
1794 MHz 19.66 5.99
1800 MHz 19.70 6.00
