| Brief Introduction |
|
|---|---|

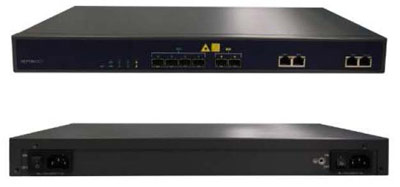

| V1600D4-L series EPON OLT product is 1U height 19 inch rack mount products. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. The OLTs can be used for "Triple -Play', VPN, IP Camera, Enterprise LAN and ICT applications. V1600D4-L provides 2GE(copper) and 2SFP slots independent interface for uplink, and 4*EPON OLT ports for downstream, It can support 256 ONUs under 1-64 splitter ratio |
| ITEM | V1600D4-L | |
| Chassis | Rack | 1U 19 Inch standard box |
1000M |
QTY | 4 |
| Copper | 2"10/10011000M |
|
| SFP | 2*SFP | |
EPON |
QTY | 4 |
| Physical lnterface | SFP Slots | |
| Connector Type | 1OOOBASE-PX20+ | |
| Max splitting ratio | 1:64 | |
| Management Ports | 1*10/100BASE-T out -band port, 1*CONSOLE port | |
| PON Port Specification |
Transmission Dis. | 20KM |
| EPON speed | Symmetrical 1.25Gbps | |
| Wave length | TX 1490nm. RX 1310nm | |
| Connector | SC/PC | |
| Fiber Type | 9/125um SMF | |
| TX Power | +2~+7dBm | |
| Rx Sensitivity | -27dBm | |
| Saturation Optical Power |
-6dBm | |
| Management Mode | SNMP, Telnet and CLI | |
| EMS | ||
| WEB | ||
| Management Function | Fan Group Detecting; Port Status monitoring and configuration management; Layer2 switch configuration such as VLAN. Trunk. RSTP, IGMP, QOS, etc; EPON management function. DBA.ONU authorization, ACL, QOS, etc; Online ONU configuration and management; User management; Alarm management. |
|
| Layer 2 Switch | 16 K Mac address Support 4096 VLANs; Support port VLAN and protocol VLAN; Support VLAN tag/Un-tag, VLAN transparent transmission; Support Vlan translation and QinQ; Support storm control based on port Support port isolation Support port rate limitation Support 802.1D and 802.1W; Support static LACP; QOS based on port,VID, TOS and MAC address; Access control list; IEEE802.x flow control; Port stability statistic and monitoring. ONU switch in the same pon |
|
| Multicast | Igmp snooping 256 IP Multicast Groups; |
|
| EPON Function | Support port -based rate limitation and bandwidth control; In compliant with IEEE802 3ah standard; Up to 20KM transmission Distance; Support data encryption. multi -cast, port VLAII. separation. RSTP, etc. Support Dynamic Bandwidth Allocation (DBA); Support ONU auto-discovery/link detection/remote upgrade of software; Support VLAN division and user separation to avoid broadcast storm; Support various LLID configuration and single LLID EPON Function configuration: Different user and different service could provide different OoS by means of different LLID channels; Support power -off alarm function easy for link problem detection. Support broadcasting storm resistance function. Support port isolation between different ports: Support ACL and SNMP to configure data packet filter flexibly; Specialized design for system breakdown prevention to maintain stable system; Support dynamic distance calculation on EMS online; Support RSTP, IGMP Proxy. |
|
| Dimension(L*W*H) | 442*200*43.6mm | |
| Weight | 4.3kg | |
| Power Supply | AC:90~264V, 47/63Hz, Double Power Supply | |
| Power Consumption | 30W | |
| Operating Environment | Working Temp. | -10~+55°C |
| Storage Temp. | -40~+85°C | |
| Relative Humidity | 5-90%(non-conditioning) | |
