OPTICAL FIBRE RIBBON

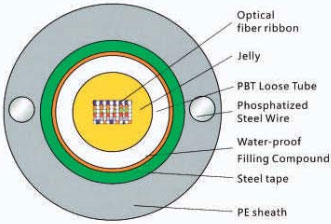

Optical Fibre Ribbon GYDXTW
| Type:GYDXTW |
 |
| Optic Fibre Ribbon in central loose tube corrugated steel tape & loose tube bound together with heat melting glue.2 pieces of paralleled steel wire within PE sheath |
| Application Range |
| For long distance and local communications. |
| Installation Method |
| For aerial mounting or in pipe |
| Application Temperature |
| -40+70 |
| Features |
With low attenuation loss and dispersion the reasonable design and precision control on fibre length in loose tube ensures better mechanical performance and adaptability to environment of the cable.
The close structure with steel tape and water resistant performance of the cable and prevent loose tube from contraction after mounting.
It could ensure better performance of resisting press with steel tape armored. |
 |
Technical Parameters
| FOC Core(S) |
FOC OD(mm) |
FOC Weight(kg/km) |
Min. Bending Radius(mm) |
Min. Tension Allowed (N) |
Min. Crush Pressure (N/100mm) |
| Static |
Dynamic Short |
Short Term |
Long Term |
Short Term |
Long Term |
| 8~36 |
14.8 |
243 |
300 |
450 |
3000 |
1000 |
3000 |
1000 |
| 48~72 |
15.8 |
289 |
320 |
480 |
3000 |
1000 |
3000 |
1000 |
| 84~96 |
16.3 |
298 |
350 |
525 |
3000 |
1000 |
3000 |
1000 |
| 108~144 |
18.3 |
377 |
400 |
600 |
3000 |
1000 |
3000 |
1000 |

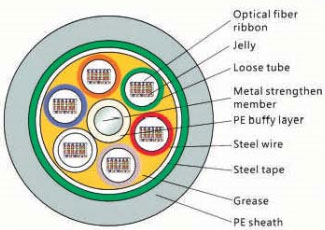

Optical Fibre Ribbon GYDTS
 |
| Type:GYDTS |
 |
| Optic Fibre Ribbon in central loose tube metalic central strength member filling compound for SZ stranded cable cores Plastics-coated steel tape & PE sheath bound together |
| Application Range |
| For long distance and local communications. |
| Installation Method |
| For aerial mounting, direct burial, or in pipe, tunnel, cable furrow etc. |
| Application Temperature |
| -40+70 |
| Features |
With low attenuation loss and dispersion the reasonable design and precision control on fibre length in loose tube ensures better mechanical performance and adaptability to environment of the cable.
The close structure of SZ layer stranding prevents optic fibre from stress under bad environment.
It could ensure moisture and water resistant performance of the cable with filling compound filled outside strength member and inside cable core.
It could ensure better performance of resisting press with steel tape armour. |
Technical Parameters
| FOC Core(S) |
FOC OD(mm) |
FOC Weight(kg/km) |
Min. Bending Radius(mm) |
Min. Tension Allowed (N) |
Min. Crush Pressure (N/100mm) |
| Static |
Dynamic Short |
Short Term |
Long Term |
Short Term |
Long Term |
| 12~14 |
18.5 |
6 |
6 |
400 |
3000 |
1000 |
1000 |
300 |
| 144~192 |
20.6 |
12 |
4 |
400 |
3000 |
1000 |
1000 |
300 |
| 216~288 |
22.0 |
12 |
6 |
460 |
3000 |
1000 |
1000 |
300 |
| 288~432 |
25.9 |
12 |
6 |
660 |
3000 |
1000 |
1000 |
300 |
| 480~576 |
29.1 |
12 |
6 |
810 |
3000 |
1000 |
1000 |
300 |
| 600~720 |
32.1 |
12 |
6 |
960 |
3000 |
1000 |
1000 |
300 |
| 792~864 |
34.0 |
12 |
6 |
1070 |
3000 |
1000 |
1000 |
300 |
